Variable Clustered Fuzzy Rules for Self-Tuning Scheme for Respiratory Distresses by Similarity and the Phase Plane Trajectory Concept

The knowledge-based fuzzy logic design is a widely used method in engineering fields like process automation and control; and non-engineering fields like economics, prediction of human behavior, and others [1]. Rule development is an important component in fuzzy model the building process; it depends on skilled expertise [2,3] A data-driven simplified self-extracted and reduced rule-base method is demonstrated in this work in order to develop a through computation powerful and linguistically comprehensible fuzzy scheme for self-tuning fuzzy logic-based PD controllers (STFLPDCs), overcoming its dependence on the expert-based rule for the tuning process.

The Fuzzy C-Means (FCM) based clustering algorithm could be used to determine the membership values of the data points with the pre-defined number of clusters [4,5], and the similarity approach concept is applied to generate a meaningful fuzzy rule base from the cluster data that are logically overlapping [6-8]. The overlapped and similar rules were reduced by implementing the similarity approach with some pre-defined limiting conditions. The extracted rules are shrunk further through the phase plane trajectory approach, which states that rules are only accountable for error and the change of error to zero (tends to zero). The presented scheme is validated by partition coefficient (PE), partition entropy (PC), Xie and Beni (XB), etc. [9,10].

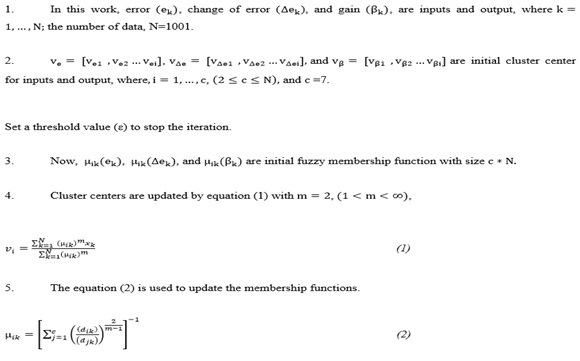

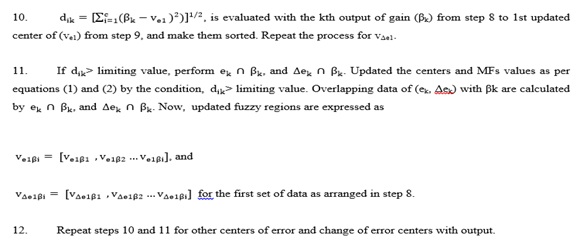

• Rule Extraction by FCM and Similarity Approach

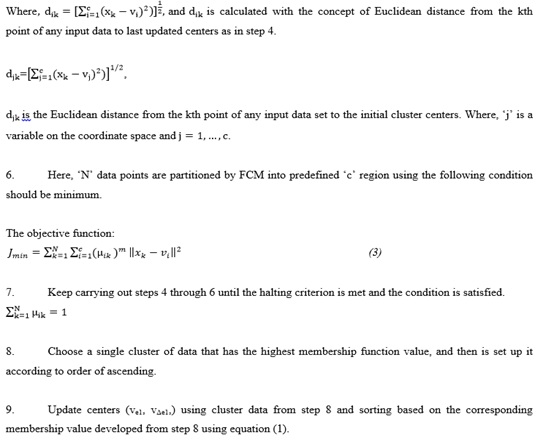

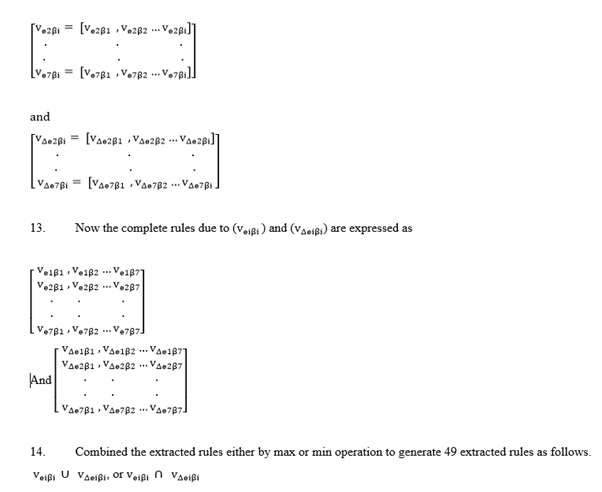

In expert rule base guidance for designing the self-tuning fuzzy controllers where the development of the fuzzy if-then rule is one of the critical tasks compared to other parts of the design under consideration. Any particular algorithm or standard method not yet established to extract some meaningful if-then rules from any processes [11,12]. Automatic efficient rule extraction and also rule reduction techniques (similarity and phase plane trajectory) are presented to extract fuzzy rules from the process data in order to address the issues of dependence on skilled professionals and the system in question itself. The developed human respiratory model and the crane model (Make: FEEDBACK, UK) are used to further examine the acquired fuzzy rule basis for STFLPDCs. The FCM algorithm initially clusters the data into seven specified fuzzy regions, after which (49) rules are extracted and also reduced to distinct numbers that correspond to the similarity analysis procedure. The phase plane trajectory approach further reduces these derived (49) rules to 13 rules. Algorithm: Extracting and reducing data-driven rules:

15. The rules are automatically extracted to generate 29/14 rules for the respiratory and also 21/16 from the 49 extracted rules for the crane by simply altering the inter-cluster distance limiting criterion in the similarity approach and repeating steps 10 through 14.

• FCM Cluster Validity Check by Different Indices

The various validity indices are applied to judge the results of the selected clustering method that best fits the partitioning of the data [9,10,13] High compactness and low separation values are the ideal parameters to validate in the context of FCM.

Bezdek [10] derived the partition coefficient (V_PC) and partition entropy (V_PE),

 The high PC value is good (closer to unity) and the low value of PE to ‘0’ is better.

In Xie and Beni's [9] index V_XB, a low value of V_XB justifies good clustering.

 Silhouette Coefficient (SC), a high value (≤1) is a good indicator [13].

As per Dunn Index (DI) [13],

• Phase Plane Trajectory-Based Rule Reduction

The process response and its associated phase plane trajectory are shown in Fig. 1a-1b and Table 1, where the error (e) is zero at "b₁" and "b₃”, the change of error (Δe) is zero at "b₂" and "b₄", and both are zero at "c" [14,15]. By only selecting the rules where (e, Δe) are approaching zero, as illustrated in Table 2 and 3, the extracted 49 rules are then reduced to 13. Phase plane trajectory tracing for an overhead crane with the different rules are shown in Fig. 2, depicting stable and converged responses.

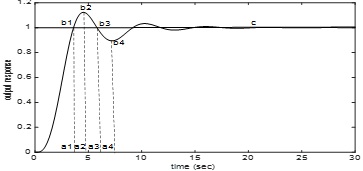

 Figure 1a: Step response of the STFLPDC for Crane model

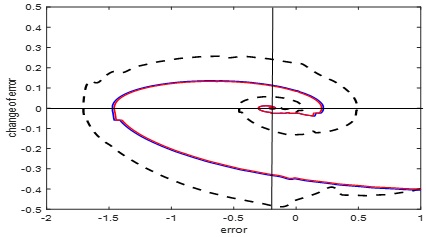

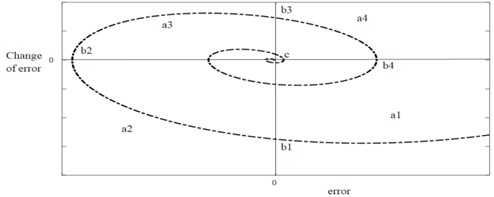

 Figure 1b: The phase plane trajectory of the STFLPDC for Crane

 Table 1: Response area mapping with the trajectory

 Table 2: Response area mapping with the trajectory plot

 Table 3: Extracted 49 rules reduced to 13 rules by the phase plane trajectory

Figure 2: Phase Plane trajectory plot for inverted pendulum model 49 expert rules - - black, (49/21/16) extracted – blue, 13 rules by trajectory – red

• Different Demonstrated Model

Human Respiratory Model

The different sections of the human respiratory system are the nasal cavity (T_FN), trachea (T_FT), bronchi (T_FB), and alveoli (T_FA) [16, 17]. The individual transfer functions are derived from the circuit diagram of Fig. 3 and with values presented in Table 4 as follows:

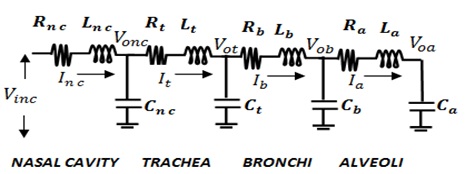

 Figure 3: Electrical R, L, C model of the human respiratory system

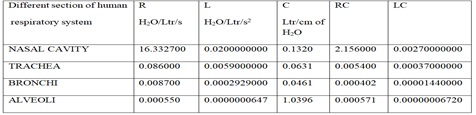

 Table 4. Different values of R, L, and C in different sections of respiratory tract

Validation of the Respiratory Model

The derived model is validated in real-time by spirometry test, and the model transfer function (T_FR) as in equation (13) is derived using MATLAB System Identification Toolbox

 A comparison of T_FR and T_FM is presented in Fig. 4 [16-18].

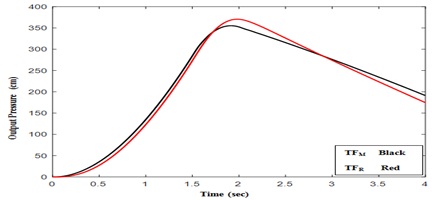

Figure 4: Comparison of the responses of the developed model and real model of respiratory system

• Design of Proposed STFLPDC

STFLPDC for human respiratory model

Because of obstructions in the respiratory pathway caused by human respiratory disorders like Bronchitis and Emphysema, less air enters the lungs than is necessary for proper respiration to occur. The result in adverse effects that have already occurred must be properly treated medically, and supplementary oxygen must be given in addition to this medicine in order to restore regular breathing [16,17].

In this study, expert and extracted rule-base for STFLPDC are provided to supply desired quantity of controlled oxygen to the patient. The developed respiratory model is used to test with the input as seen in Fig. 5, and the outcomes of the proposed fuzzy model for STFLPDC using automatically extracted rules (49 rules), reduced extracted rules (29/14 rules), and 13 rules by trajectory approach are compared with expert knowledge-based 49 if-then rules.

The Input signal/ Normal breathing pattern

The breathing cycle in Fig. 5 lasts a total of 4 seconds, with t₁ (inspiration time) equaling 1.5 seconds (0  ≤  t  ≤  t₁  )  and t₂-t₁ (expiration time) equaling 2.5 seconds (t₁  <  t  ≤  t₂).

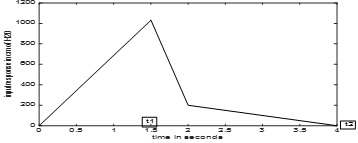

Figure 5: Normal breathing cycle

Oxygen cylinder with valve model

The oxygen supply model to the patient developed from the electrical analogy drawn in Fig. 6 as follows:

According to the patient's oxygen needs, P₁, P₂, q, R, and C in Fig. 6 represent the input oxygen pressure, output oxygen pressure, oxygen flow rate, flow track resistance, and capacities of the system, respectively.

The oxygen supply system's transfer function can be deduced as follows:

To achieve the optimal fit value to build the TF_cylinder model, the experiment is conducted with different set of R and C values and achieved the best result is at 0.25sec.

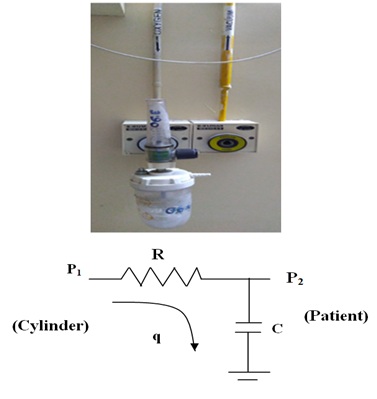

 Figure 6: Oxygen supply electrical analogy model.

Development of the proposed STFLPDC Scheme

The STFLPDC is designed with 49 fuzzy if-then rules and 49 fuzzy gain rules exhibited in Table 5, this scheme is proposed here to auto-tune the model appeared in Fig. 7. This scheme generates an additional automatic corrective gain signal ‘β’ at every instant, which coalesces with the FLPDC output ‘u’ and scaling factor ‘G_u’, to generate G_u*u*β to generate the tuned output for the required amount of O₂ supply to the patient.

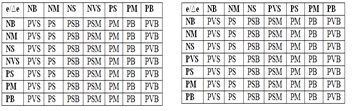

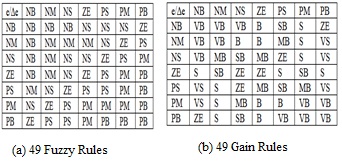

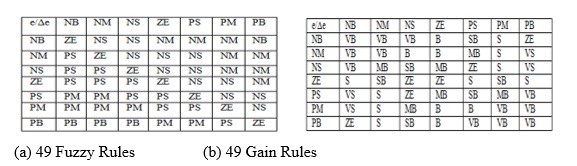

Table 5. Expert 49 rule matrix of FLPDC and 49 rule matrix of STFLPDC for respiratory model

The automatic oxygen supply control scheme with STFLPDC for diseases like Bronchitis and Emphysema is depicted in Fig. 7.

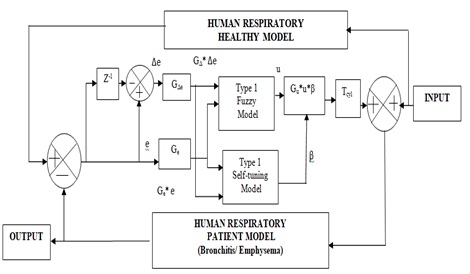

 Figure 7: The proposed STFLPDC scheme

The extracted (49/29/14) fuzzy rules by similarity analysis are shown in Table 6-8 to build up the model of the self-tuning part of STFLPDC in the MATLAB Simulink environment. Another STFLPDC is designed by trajectory approach, where extracted 49 rules are reduced to 13 rules displayed in Table 3.

 Table 6. Extracted 49 rule matrix of STFLPDC developed respiratory model

Table 7. Extracted 29 rule matrix of STFLPDC developed respiratory modelTable 8. Extracted 14 rule matrix of stflpdc for developed respiratory model

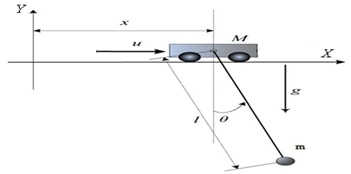

STFLPDC design for overhead crane

For the purpose of controlling an overhead crane, a dual control strategy employing a self-tuning PD technique is suggested [19,20], with one controlling position and the other controlling swing. To develop self-tuning FLPDC (STFLPDC), a span of ±1m and ±20° respectively for (e, ?e, and u/θ) are considered for FLPDC section and for self-tuning part, the span of β is selected from [0m, +1m] and [0° (0c), +20° (0.349c)] 49 gain rules using Table 9 for position and angle control, respectively, while keeping e, Δe the same as shown in Fig. 8 [21,22]. The gain rule base of STFLPDCs for position and angle controller are designed with 49/21/16 extracted gain rules in Table 10-12.

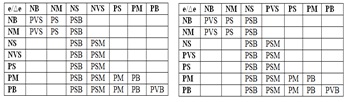

 Table 9. Expert 49 rule matrix of FLPDC and 49 gain rule matrix of STFLPDC of crane model for position and angle control

 Table 10. Extracted 49 rule matrix of STFLPDC of crane model for position and angle control

 Table 11. Extracted 21 rule matrix of STFLPDC of crane model for position and angle control

 Table 12. Extracted 16 rule matrix of stflpdc for crane model for position and angle control

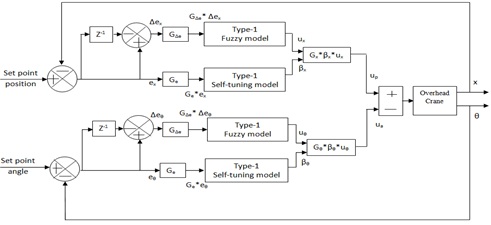

 Figure 8:  Block diagram of STFLPDC for overhead crane model

The rules are extracted by using FCM and this is validated through different validity indices mentioned in section 3 and the results are presented in Table 13-14 below.

Cluster convergence test

The ratio M is expressed by the cost function

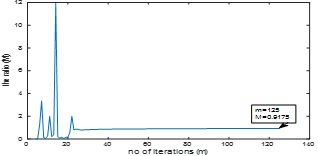

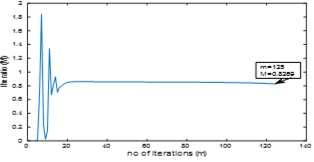

The below Fig. 9a-9c illustrates the FCM-based clusters are significantly converged as  for all e_k, Δe_k, β_k respectively.

 Table 13. Different validity index for respiratory model

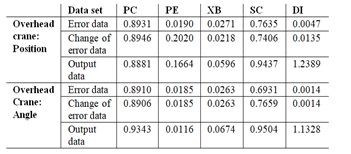

 Table 14. Different validity index for crane model

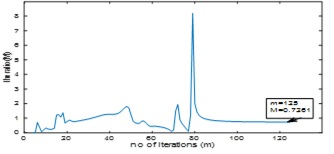

Fig. 9a. Convergence test of the FCM cluster for e_k

Fig. 9b. Convergence test of the FCM cluster for Δe_k

 Fig. 9c. Convergence test of the FCM cluster for β_k

STFLPDC for respiratory model

In this study, the usefulness of the constructed self-tuning model STFLPDC with modifications of extracted gain rules in two different ways (similarity and trajectory) is demonstrated on the respiratory distress due to respiratory diseases, namely, Bronchitis and Emphysema, and tested with different oxygen cylinder models. The oxygen cylinder model 1/ (1+0.5*S) shows the better result in diseases like Bronchitis and Emphysema exhibited in Fig.11 and Fig.14 respectively. Now the proposed STFLPDC scheme is designed with automatically extracted gain rules (49), and subsequent reduction of rules by 59.18% (29), 28.57% (14), and 26.5% (13).  The performance analysis of these controllers in the Bronchitis and Emphysema model is demonstrated in Fig. 12 and Fig. 15. The efficiency of the designed controllers is compared. The comparison with other controllers is shown in Fig.10 and Fig. 13 for Bronchitis and Emphysema.

Bronchitis

The resistance of the bronchial section is increased by around 2000 times due to Bronchitis which impedes the O₂ intake and also slows down the respiratory process and as a result the bronchial model is changed to TFB'.

Emphysema

The capacitance of the alveoli is increased by more than 5000 times due to long-term smoking cause’s air to build up within these sacs for Emphysema [23,24].  The diseased alveoli model is modified to TFA'.

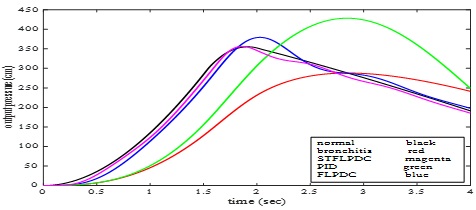

 Figure 10: Study of different controllers on Bronchitis.

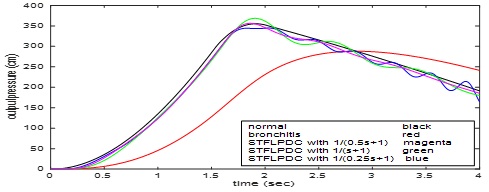

 Figure 11: The effect of different combination of RC values for Bronchitis for the proposed STFLPDC

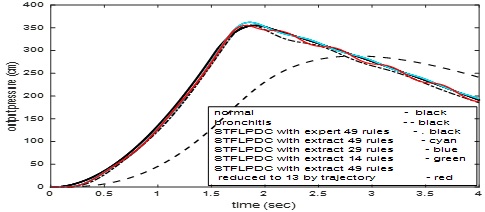

 Figure 12: The effect of Bronchitis due to different extracted rules

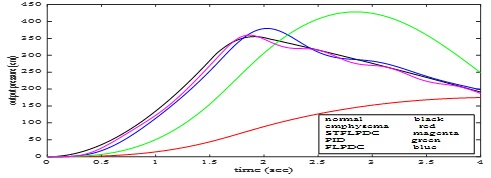

 Figure 13: Study of different controllers on Emphysema

 Figure 14: The effect of different combination of RC values for Emphysema for the proposed STFLPDC

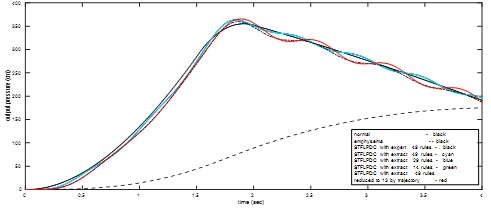

 Figure 15: The effect of Emphysema due to different extracted rules

The response due to STFLPDC for the developed respiratory model is done by calculating the correlation coefficient (R) (towards +1 (but less than +1) is an indicator of goodness).

Where, (d_n, σ_n) and (d_s, σ_s) are the data set and their standard deviation corresponds to the healthy patient model and responses due to different rules (expert, extracted, and trajectory) of proposed STFLPDC, FLPDC, and PID for respiratory model respectively. The effectiveness of the proposed controller for the respiratory models with extracted rules with the healthy patient for Bronchitis and Emphysema are presented by correlation coefficient and mean square error (MSE) as shown in Table 15-16.

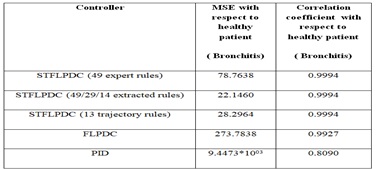

 Table 15. Comparative study of different controllers for Bronchitis

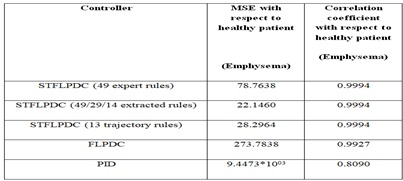

 Table 16. Comparative study of different controllers for Emphysema

Real time application with STFLPDC for overhead crane model

Another STFLPDC [22] is designed with modifications of extracted gain rules Table 18-20 and Table 21 by two different ways (similarity and trajectory) and demonstrated on a laboratory-based overhead crane system (Make: FEEDBACK, UK).

Due to the coupling between position and angle control under any loading/unloading condition in the actual plant, crane control is a challenging task [15,19]. The study takes a standard nonlinear crane model (“19” and “20”) into consideration, and Table 17 displays the parameters used to design the overhead crane model as shown in Fig. 16 [25,26].

All the designed System responses show that the extraction and reduction (by both similarity and trajectory) of the rule base developed by both methods do not affect the system performance which ensures the success of the proposed rule extraction and reduction processes as shown in Fig. 10-20.

  Figure 16: Pictorial view of the Overhead Crane

Table 17. Specification of overhead crane model

 Table 18. Extracted 49 gain rules

 Table 19. Extracted 21 gain rules

 Table 20. Extracted 16 gain rules

Table 21. Extracted 13 gain rules by trajectory approach

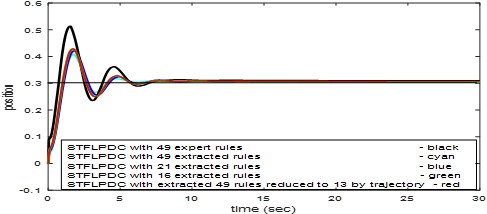

Figure 17: Study of STFLPDC (extracted 49/21/16 rules) to overhead crane position control and extracted 49 to13 rules by phase plane trajectory

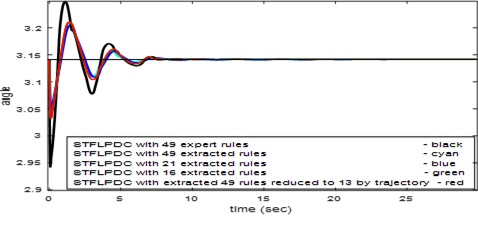

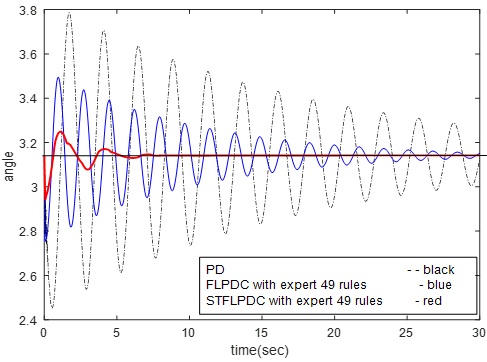

Figure 18: Study of STFLPDC (extracted 49/21/16 rules) for overhead crane angle control and extracted 49 to13 rules by phase plane trajectory

 Figure 19: Study of different controllers for overhead crane position control

 Figure 20: Study of different controllers for overhead crane angle control

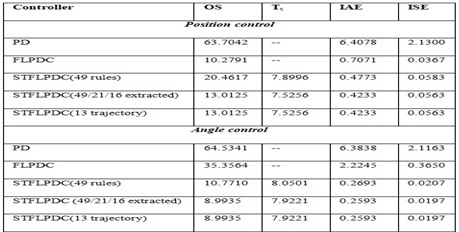

 Table 22: Comparative study of different controllers for overhead crane

A straightforward and efficient framework for obtaining the necessary response is provided by the proposed automatic extracted rule for self-tuning based fuzzy controllers. For self-tuning controllers, the automatic extracted/reduced fuzzy if-then rules using FCM and similarity analysis, and these extracted rules additionally reduced by phase plane trajectory are computationally effective and comprehensible. The varied rule bases of the designed controllers were successfully tested on the various systems. Various validity indices assess the separation and compactness of the cluster. The multiplier of the self-tuning controllers is varied by tuning the controllers with various numbers of extracted/reduced gain rule bases. It is evident that the proposed rule-base extraction technique for controllers performs successfully when comparing the results obtained by applying various other control schemes to the respiratory model to control oxygen supply regulation, and to the overhead crane to control position and swing to get desired response. The developed model has been validated using a real human respiratory system by spirometry test, and it has an accuracy of up to 95.63%. The proposed controller (STFLPDC) with variable extracted rules for bronchitis and emphysema disease responds better than expert rules, according to the correlation coefficient and mean square error metric (MSE) and also for crane model by comparing different performance indices. Experimental validation results show that the established rules for the various STFLPDC schemes have acceptable accuracy and good interpretation features.
